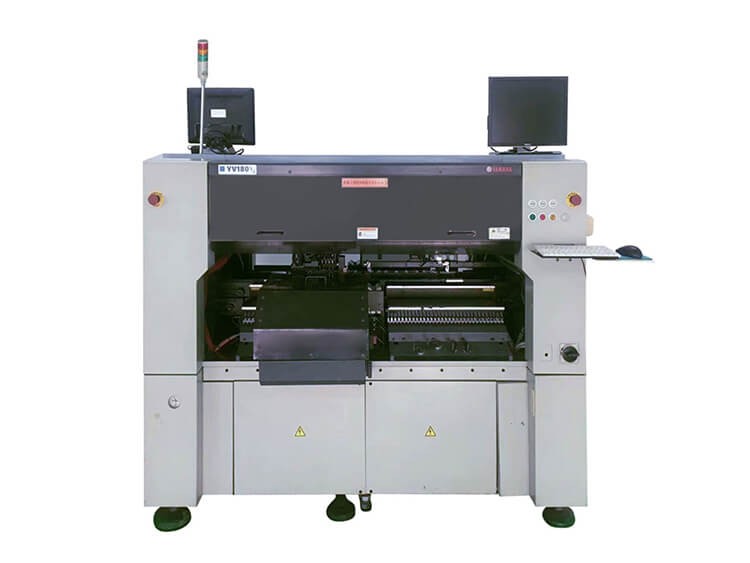

YAMAHA YV180 Pick and Place Machine

YAMAHA YV180 Pick and Place Machine

  • YAMAHA YV180 Pick and place machine
  • Patch speed 30,600CPH
  • L1960XW1630X1450
  • weight: 2080KG
  • Product description: YAMAHA YV180 Pick and Place Machine, Patch speed 30,600CPH, weight: 2080KG, Dimension:L1960XW1630X1450
  • INQUIRY

YAMAHA YV180 Pick and Place Machine

Description:

YAMAHA YV180 Pick and Place Machine

Brand: yamaha,
Model: yv180x
New and old: 8 into a new.
Machine age: yv180x, 20feeder, 2004
The main working parameters:
Power supply voltage: 380 (V)
Patch speed: 0.11 seconds / CHIP
0.16s / pcs, 0402/0603 / sop, QFP139029 ... Japan YAMAHA Y180X placement machine:
SMD PCB size: L330XW330MM_L50XW50MM
Chip components: 0603 (MM) -31MMX31MM
SMD components can be put 96 kinds (8MM)
Mounter size: L1960XW1630X1450
Mounter weight: 2080KG
Mounter YAMAHA YV180xg
Substrate inch method L330 × W330mm (Max) / L50 × W50mm (Min)
L380 × W330mm (Max) / L50 × W50mm (Min)
Accuracy (μ + 3σ): ± 0.05mm / CHIP, ± 0.05mm / QFP Mounting Speed 0.095sec / CHIP 【Optimal Condition】
1608CHIP: 30,600CPH (0.118 seconds / CHIP conversion) [IPC9850 conditions: M distinction]
Mounting Area 0603 ~ □ 31mm Parts, SOP / SOJ, QFP, Connector, PLCC, CSP / BGA (※ 1)
※ □ 25mm ~ □ 31mm parts are available, the shaft can be equipped with spin-off possible.
FNC ヘ ッ ド: Before moving into the substrate above the allowable high さ 4mm or less, carrying parts may be high さ 6.5mm
Standard ヘ ッ ド: move into the substrate above the allowable high さ 6.5mm or less, carrying parts may be high さ 6.5mm
Dimensions inch method L1,960 × W1,630 × H2,000mm
The body mass is about 2,080kg

Keywords:

JUKI RS-1R pick and place machine, JUKI RX-7R pick and place machine, Hanwha SM481 Plus Pick and Place Machine, Hanwha Decan S2 Pick and Place Machine, SMT pick and place machine, JUKI Pick and place Machine, Samsung Pick and Place Machine, Yamaha Pick and Place Machine, Panasonic Pick and Place Machine, FUJI Pick and Place Machine, Siemens Pick and Place Machine.

Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT Reflow OvenWave Soldering MachinePick and Place MachineSMT Stencil PrinterSMT Inspection MachineSMT Reflow OvenSMT Peripheral EquipmentSMT Assembly lineSMT Spare Parts  etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: sales@flason-smt.com
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. SMT Assembly Line Total Solution !
B. Life Time Techinical Support !
C. Free Online Training Installation Service !
