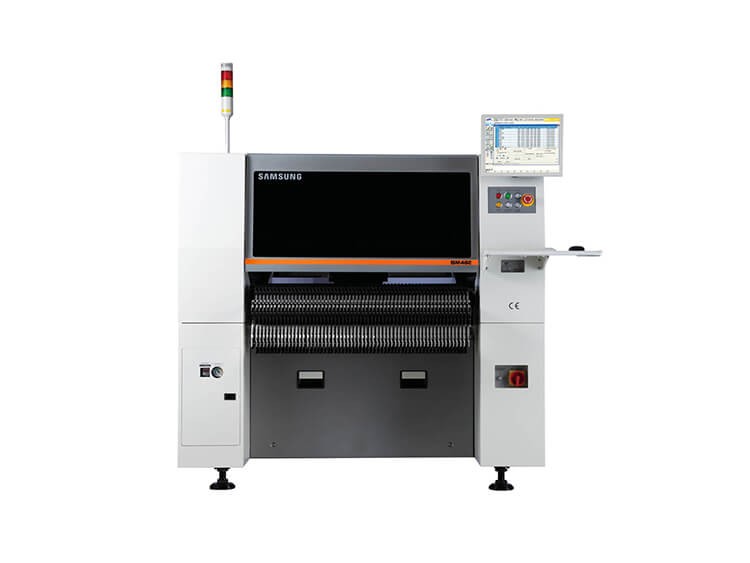

Samsung SM482 Pick and Place Machine
Chip theoretical speed of 28,000 CPH
Mounting range 0402Chip ~ □ 55mmIC
Placement accuracy plus or minus 0.03mm
PCB size 460 (L) * 400 (W)
Equipment Size 1,650 (L) x 1,680 (D) x 1,530 (H)
Power AC200 / 208/220/240/380
Equipment weight 1600KG
Based on SM471 high-speed placement machine, the SM482 is a rugged, 6-axis universal machine with
up to 55mm ICs for ruggedness and support for Polygon identification solutions. For the shape of
complex shaped components provide the best solution. Also, by applying electric feeder, increased
practical productivity and placement quality. It can share with the SM pneumatic feeder *
The original SM3 / SM4 series of feed Therefore, it will be more convenient for the old customers,
while saving the configuration of the dispenser (the latest electric feeder can get the highest
accuracy and fast response speed, improve quality and production capacity).
High-speed. High-precision electric feeder
Suction position automatic alignment function
SM pneumatic feeder can be shared
New vacuum system and suction / mount mode for SMART Feeder optimization
The world's first automatic pick material, automatic feeding
Positioning: flight camera + fixed camera
Placement Number of axes: 6 Axis x1 Cantilever
Mounting Speed: 28,000 CPH (Best Condition)
Corresponding components and parts:
0603 ~ □ 55mm (H 15mm), 0402 (Option)
PCB size (mm):
460 (L) x 400 (W) 510 (L) x 460 (W) (optional)
610 (L) x 510 (W) (Option) 740 (L) x 460 (W) (Option)
PCB thickness: 0.38-4.2mm
Feeder quantity (8mm basis): 120ea / 112ea
Power AC200 / 208/220/240/380 / 415V (50 / 60HZ, 3Phase)
Air consumption 0.5-0.7MPa (5-7kgf / cm2) 180N / min
Dimensions: 1,650 (L) x 1,680 (D) x 1,530 (H)
Weight: about 1600kg
