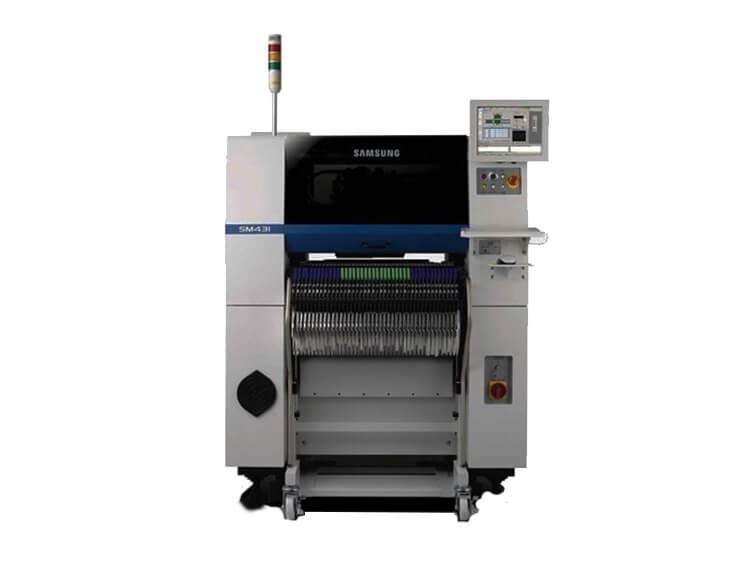

Samsung SM431 Pick and Place Machine

Products Description:

1. Mounting speed: chip 21k CPH (IPC9850) / QFP 5.5K CPH (IPC9850)
2. Corresponding components: Max 0402-55mm (component height H = 15mm)
3. Mounting accuracy: Cbip +/- 50um (Cpk 1.0) / QFP +/- 30UM (Cpk 1.0)
4. Corresponding PCB: L460 * W400 * 1Lane (standard) / Max L610 * W510 * 1 Lane
5. Centering mode: flight vision + fixed vision
Number of axes: 6 axes * 1 stand
7. Mounting speed: flight vision

Samsung SM431 pick and place machine is the high speed chip mounter

components identifation: New Flying Vision

SM431 components range: 0402 Max - 12mm IC chip,

Max PCB size: L460ⅹW460 PCB .


Max patch speed: Chip 42K CPH (IPC9850)
Component range: 0402 ~ 12mm (H = 7mm)
Placement Accuracy: ± 50㎛ @ μ + 3σ / chip
Max PCB size: Max. L460ⅹW460ⅹ1lane
Max. L460ⅹW250ⅹ2lane


Chip theory speed speed 55,000CPH
Mounting range 0402mm Chip to □ 12mm
Positioning accuracy of plus or minus 0.05mm
PCB size 460 x 460 (1PCB)

Samsung SMT SM431 efficient and wide range of support for all forms of production,

with its class in the world's fastest, universal type surface mount machine can mount a wide
range of components, the specific realization of "Limitless EXpansion" a number of
functions as Standard configuration, to ensure high-quality placement of a highly flexible feeding device.

Samsung SM431 parameters
1) Speed 55,000CPH (Best condition)
2) dual-arm Y-axis dual servo drive system
3) arms a total of 16 placement head
High-speed flight image recognition system
- Components to adapt to: 0402mm Chip to □ 12mm
- Mounting accuracy: ± 50μm @ 3σ
4) For new SM feeding system
- For non-stop feeder
- for the rail way feeder
-LED Displays feeder status
5) dual transmission system
- Dual transfer mode: 330 x 250 (2 PCBs)
- Single transfer mode: 460 x 460 (1PCB)
6) Can put 84 8mm feeders
7) LCD display with front and rear operation
8) automatic mouth change device
9) Windows XP operating system
10) Safety cover
11) Kit

Packaging & Delivery
Packaging Details
High - speed used surface chip mounter Samsung SM431 Pick and

Place SMT Machine for circuit board placement package

1) Standard box package for light and small item;
2) Strong wood package for heavy and large equipment.
Delivery Time
smt Machine Within 15-20 working days after get payment


Keywords:

JUKI RS-1R pick and place machine, JUKI RX-7R pick and place machine, Hanwha SM481 Plus Pick and Place Machine, SMT pick and place machine, JUKI Pick and place Machine,Samsung Pick and Place Machine, Yamaha Pick and Place Machine, Panasonic Pick and Place Machine, FUJI Pick and Place Machine, Siemens Pick and Place Machine.


Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT Reflow Oven ManufacturerWave Soldering MachinePick and Place MachineSMT Stencil PrinterSMT Inspection MachineSMT Reflow OvenSMT Peripheral EquipmentSMT Assembly lineSMT Spare Parts  etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: sales@flason-smt.com
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
