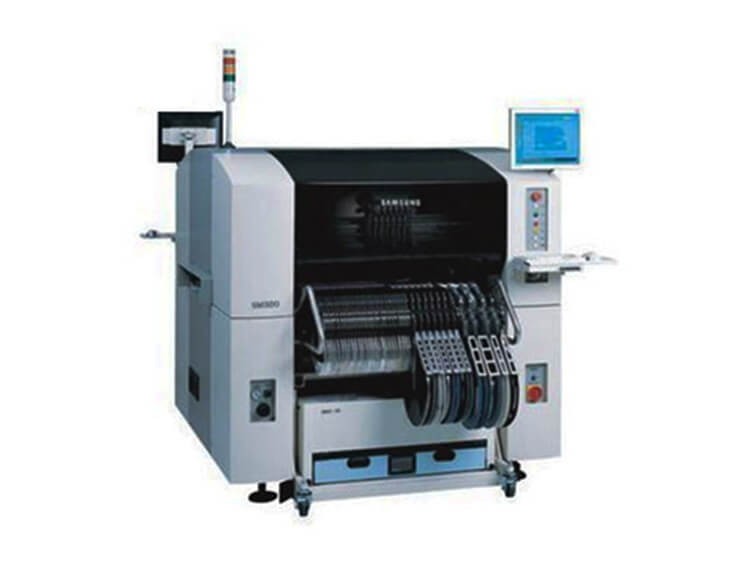

Samsung SM320 Pick and Place Machine
used Samsung SM320 placement machine.
all equipment have good working condiction and competitive price!
Chip theoretical speed ：18500CPH
Mounting range 0402mm Chip ~ □ 55mm IC
Placement accuracy plus or minus 0.03mm
PCB size 510 * 460-460 * 400mm
Equipment size 50 x 40 mm ~ 460 x 400mm
Component identification method
FLYING VISION + STAGE VISION
Flight camera recognition system
CHIP 1608 18500 CPH (IPC9850)
SOP 15000 CPH (IPC9850)
QFP 5500 CPH (IPC9850)
Fixed camera vision system
1.4 SEC / QFP208 (TRAY SUPPLY STANDARD)
Components can be mounted range
FLYING VISION：1005 ~ □ 22mmIC (Option: 0603 ~ □ 12mmIC / 0402 ~ □ 7mmIC)
Mounting size：Standard stage vision (FOV 35) ~ □ 32mmIC
(Pitch 0.4mmQFP / 0.75mmBGA / ~ □ 55mm (MFOV))
Standard stage vision (FOV 45) ~ □ 42mmIC (Pitch 0.5mmQFP / 1.0mmBGA / ~ □ 55mm (MFOV))
Standard stage vision (FOV 20)~ □ 17mmIC (Pitch 0.3mmQFP / 0.5mmBGA)
Min.lead pitch (QFP) FOV10
0.3mm (QFP) /0.65mm (BGA)
Min.Ball pitch (BGA)
0.5mm (QFP) /0.75mm (BGA)
0.5mm (QFP) /0.75mm (BGA)
H12mm (Flying camera standard)
H15mm (Flying camera standard)
PCB board size
50 (L) * 40 (W)
460 (L) * 400 (W) / Option: 510 * 460, 640 * 510
PCB board thickness
Install feeder number
120ea / 112ea (docking cart)
Pressure and power consumption
AC220 / 220 / 240V (50 / 60HZ, 3 PHASE) (Option: 340/380 / 415V)
5kg / ㎡, 260 NI / MIN
1650 L * 1680 D * 1530 H.
Samsung SMT SM320 is a universal Mounter, can produce small pieces of CHIP materials,
but also can produce QFP material, suitable for small-scale production of independent products,
but also can be used in high-life turret Mounter Line for multi-functional chip processing.
Equipment, small size, light weight, does not account for the place.
Popular SM320. Highly Flexible, user friendly machine and highly reliable. Full vision with 6
placement heads, each with individual illumination allowing 6 totally different components to
be aligned on the fly. Upward looking camera allowing placement of components down to 0.4mm Lead pitch.
Full Vision Mounter 19k cph
Fully Overhauled & Re-Painted
Large PCB Size 610mm x 400mm
01005 ~ 22mm Square by Flying Vision Alignment (01005 Camera as option)
0.4mm Lead pitch @ 32mm Square using Vision Alignment
0.3mm Lead pitch camera included
BGA/CSP/uBGA by Vision Alignment
Feeder Capacity up to 120 x 8mm Feeders
IPC rated speed of 18'500cph (IPC9850 1608Chip)
Full set of nozzles to cover all component types
Large Component Library as Standard withmore than 1'800 component types
CAD Import facility as standard
Robust & Highly reliable Machine, fully supported by Elite 7 Installations Ltd.
Small Footprint for this Industrial Machine
Takes Standard Easy to use SM Clamp Feeders, colour coded for ease of identification
Great addition to any Existing line to add capacity or fine pitch
Machine will be fully overhauled by our Experts
Warranty offered and fully supported by Elite 7 Installations Ltd.
Latest Software will be loaded
Fully tested & rebuilt
