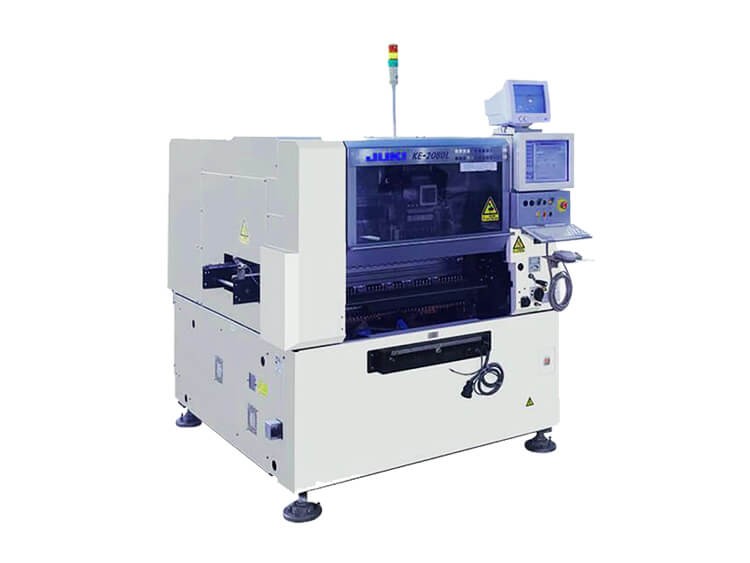

JUKI KE2080 Pick and Place Machine
JUKI KE2080 Placement machine Feature
The ultra-flexible KE-2080 can place a wide range of components from 0402 (01005) and ICs, to odd-form：
all at industry leading accuracy and speed.
1,850CPH (vision centering / effective tact)
4,860CPH with MNVC option.
(510 x 360 mm) L-Wide substrate (510 x 360 mm) (optional) E Substrate (510 x 460 mm) *1
Component size: Laser recognition 0402 (English 01005) Chip ~ 33.5mm square element
Image recognition standard Camera: 3mm square element * 2 ~ 74mm square or 50 × 150mm
high resolution camera (optional): 1.0 × 0.5mm * 3 ~ 48mm square element or 24 × 72mm
Component Mounting speed: Chip components Best conditions: 0.178 seconds / chip
(20,200CPH) IPC9850 16,700CPH IC components * 3 1,850CPH 4,860CPH * 4
Component Mounting accuracy: Laser recognition: ± 0.05mm (Cpk ≧ 1)
Image recognition: ± 0.03mm (± 0.04mm when using MNVC (optional)Component Mounting Type: Up to 80 (converted to 8mm) * 5
From 0402 (01005) to 74mm square components or 50×150mm
Vision centering system (featuring bottom, side, and back lighting, all ball recognition and split recognition)
1）Please ask for details on E size board.
2）When using MNVC. (option)
3）When using high-resolution camera. (option)
4）Effective tact: The IC placement speed indicates an estimated value obtained when the machine
places 36 QFP (100 pins or more) or BGA components (256 balls or more) on a M size board.(CPH=number of components placed for one hour)
China Reflow oven, Pick and place machine factory,China Chip mounter, SMT chip mounter Manufacturer, Lead Free Reflow Oven factory, wave soldering machine manufacturer,pick and place machine supplier.
Flason Electronic Co.,ltd provide a full smt assembly line solutions, including Lead free reflow oven, wave soldering machine, SMT Pick and place machine, SMT stencil printer, PCB Conveyor manufacturer, PCB unloader, chip mounter, SMT AOI machine, SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment, PCB production Equipment smt spare parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:008613691605420, Skype: flasonsmt, Email: firstname.lastname@example.org
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
