  • JUKI KE-2060M Pick and Place Machine
  • JUKI KE-2060M Pick and Place Machine
JUKI KE-2060M Pick and Place Machine JUKI KE-2060M Pick and Place Machine

JUKI KE-2060M Pick and Place Machine

  • Applicable Components: 0603
  • Board size:330×250mm
  • Feeder inputs:80
  • placement capacity:12,500CPH
  • Product description: JUKI KE-2060M Pick and Place Machine
  • INQUIRY

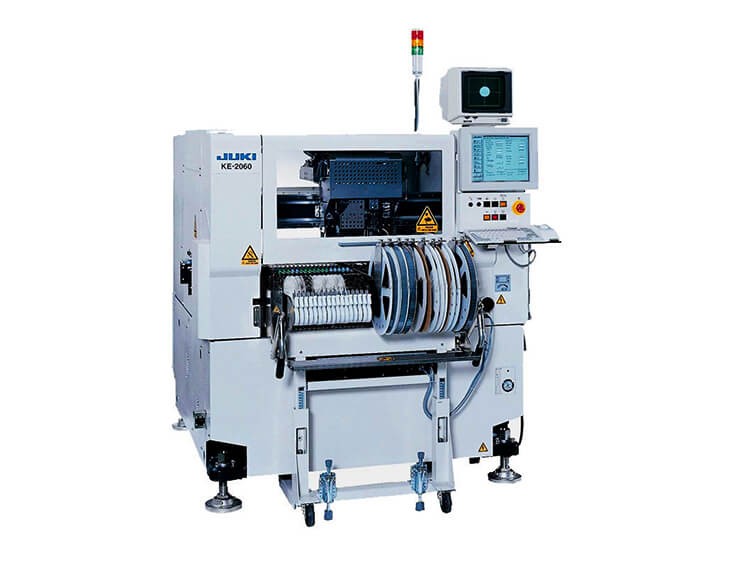

JUKI KE-2060M Pick and Place Machine

Product Features:


Introduce of JUKI SMT Pick and Place Machine:

The ultra-flexible KE-2060 can place a wide range of components from 0603 and ICs, to odd-form, all at a high rate of speed.

12,500CPH?chip (laser centering/effective tact)
1,850CPH: IC (vision centering/effective tact), 3,400CPH with MNVC option.
One multi-nozzle laser head (4 nozzles) plus one high resolution head (1 nozzle)
from 0603 ?0201? to 74mm square components or 50×150mm
0402 (01005) option factory installed.

Vision centering system (featuring bottom, side, and back lighting, ball recognition and split recognition)

1 Actual throughput may vary.
2 Please download brochure for details.



Main Features of SMT Pick and Place Machine?

Board size M size (330×250mm)
L size (410×360mm)
L- wide (510×360mm)
E size (510×460mm)*1
Component size Laser recognition 0603 (0201)??20mm or 26.5×11mm
(0402 (01005) optional)*5
Vision recognition 1.0×0.5mm*2??20mm or 26.5×11mm
Placement speed Chip 12,500CPH*2
IC 3,290CPH*3
Placement accuracy Laser recognition ±0.05mm
Vision recognition ±0.04mm
Feeder inputs Max. 80 on 8mm T/F*4
*1   Production arrangement starts only after receipt of P/O for E size board.
*2   Effective tact: The chip placement speed indicates an estimated value obtained when the machine places 400 1005-chips all over an M size board.
?CPH?number of components placed for one hour?
*3   Estimated value when using MNVC and picking up components simultaneous with all nozzles.
*4   In addition to matrix tray changer, max 110.
*5   Please ask for details on 0402(01005) placement.

Keywords:

JUKI RS-1R pick and place machine, JUKI RX-7R pick and place machine, Hanwha SM481 Plus Pick and Place Machine, SMT pick and place machine, JUKI Pick and place Machine,Samsung Pick and Place Machine, Yamaha Pick and Place Machine, Panasonic Pick and Place Machine, FUJI Pick and Place Machine, Siemens Pick and Place Machine.


Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT Reflow Oven ManufacturerWave Soldering MachinePick and Place MachineSMT Stencil PrinterSMT Inspection MachineSMT Reflow OvenSMT Peripheral EquipmentSMT Assembly lineSMT Spare Parts  etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: sales@flason-smt.com
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
