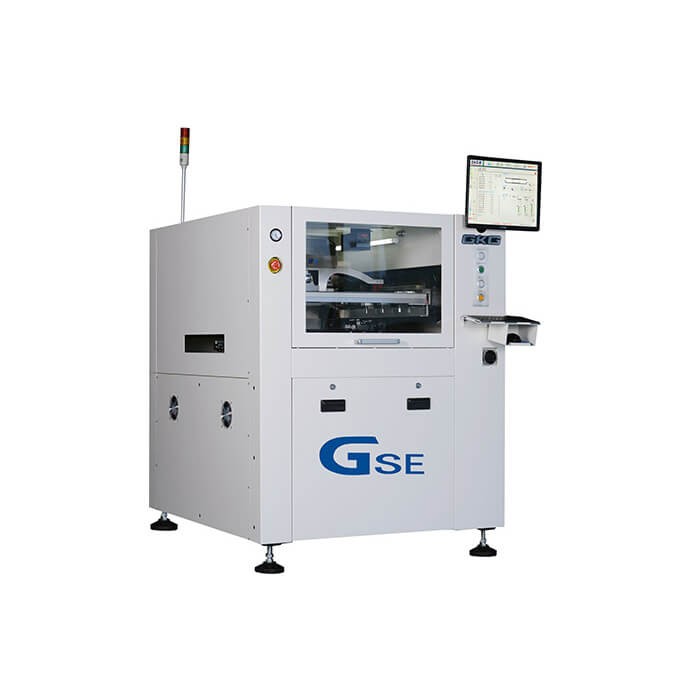

GKG GSE SMT Stencil Printer

PCB weight:3KG
PCB Size:400x340mm
Weight:1000Kg
size: 1158*1362*1463mm
Product description: GKG GSE SMT Stencil Printer, PCB weight:3KG, PCB Size:400x340mm, Weight:1000Kg, size: 1158*1362*1463mm
INQUIRY

Specifications:

Automatic solder paste printer is a high-precision and high-stability automatic vision printer. GKG company follows the development trend of the SMT industry. The new generation of automatic vision printer is synchronized with international leading technology, high-resolution visual processing. , High-precision drive system, Suspending adaptive scraper, precise plate positioning processing and smart frame clamping structure, compact structure, both accuracy and high degree of flexibility, provide customers with efficient, accurate printing required Function, more customers provide a prominent price.

The main technical parameters:
(1) Printing accuracy: ±0.025mm
(2) Repeat accuracy: ±0.01mm
(3) Printing cycle: <7.5s
(4) Frame size from 420×520mm to 737×737mm
(5) Printable PCB size from 50×50mm to 400×340mm

Item	Parameter
Repeat Position Accuracy	±0.01mm(Test data and method are available)
Printing Accuracy	±0.025mm(Test data and method are available)
Printing Speed / Cycle Time	<8s (Exclude Printing & Cleaning)
Products Changeover	<5Min
Screen Stencil Size/Min-Max	470mm X340mm-737x737mm
Screen Stencil Size/Thickness	20mm ~ 40mm
PCB Size/Min-Max/Thickness	80X50mm-400x340mm/0.4~15mm
PCB Warpage Ratio	＜1%（Based on diagonal length）
Bottom of Board Size	15mm（Standard configuration）, 25mm
Edge of Board Size	3mm
Conveyor Height	900±40mm
Conveyor Direction	Left-Right; Right-Left; Left-Left; Right-Right
Conveyor Speed	100-1500mm/sec Programmable control
Support System	Magnetic pin/Side support block/Flexible automatic pin（optional）
Clamping System	Elastic side clamping/Vacuum nozzle/Extension-type Z-direction table setting
Print head	Two indepandent Motorised printheads
Squeegee Speed	6~300mm/sec
Squeegee Pressure	0-10kg software control（closed-loop pressure feedback）, pressure value visible
Squeegee Angle	60°(Standard )/55°/45°
Squeegee Type	Steel squeegee (standard), rubber squeegee, and other types of squeegee shall be customized.
Steel Mesh Separation Speed	0.1~20mm/sec Programmable Control
Cleaning Method	Dry-type, wet-type, vacuum-type ( Programmable combination of Cleaning methods）
Table Adjustment Range	X:±3mm; Y:±7mm θ:±2°
Type of Fiducial Point	Standard geometry shape of fiducial point, bonding pad / Stencil hole
Camera System	Single digital camera for upward/downward vision system
Air Pressure	4~6Kg/cm2
Air Consumption	Approx 0.07m3 /min
Control Method	PC Control
Power Supply	AC:220±10%,50/60HZ 1Φ 1.5KW
Machine Dimensions/Weight	Depends on exactly model
Operation Temperature	-20°C ~ +45°C
Operation Humidity	30%~60%

Keywords:

SMT Stencil Printer, Solder Paste Printer, Semi Auto SMT Stencil Printer, Automatic Solder Paste Printer, GKG G5 SMT Stencil Printer, China SMT Stencil Printer, Online SMT Stencil Printer, SMT Stencil Printer Manufacturer.
