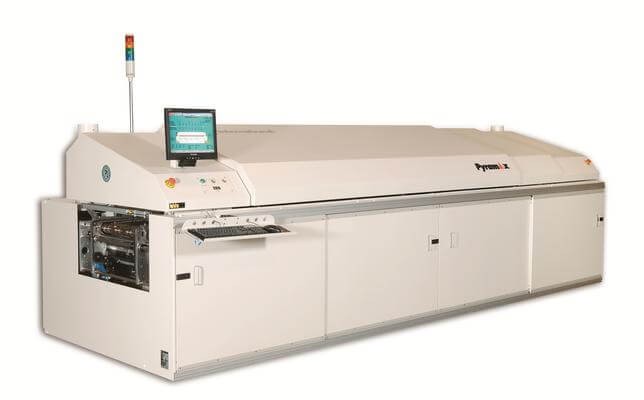

BTU Pyramax Convection Reflow Oven

Products description



BTU Pyrama family of high-throughput thermal processing systems is widely recognized as the global standard of excellence for both printed circuit board solder reflow and for semiconductor packaging.

Pyramax™ systems provide optimized lead-free processing for the ultimate in productivity and efficiency. BTU’s exclusive closed loop convection control provides precise heating and cooling, programmable heat transfer, and reduced nitrogen consumption, adding up to the lowest Cost of Ownership in the industry.

With 6, 8, 10 and new 12-zone air or nitrogen models, 350oC maximum temperature and a comprehensive menu of options, Pyramax™ systems are the industry’s most versatile performers and best value.

Closed Loop Convection

BTU’s exclusive Closed Loop Convection Control provides maximum flexibility in process control.

  • Side-to-side recirculation enhances temperature uniformity
  • Guaranteed process repeatability, system to system, site to site
  • Unmatched convection efficiency reduces zone temperature setpoints.

Flux Management System

BTU’s patented Flux Management System traps flux residue from the process chamber, preventing it from settling within the oven, leading to increased uptime and lower cost-of-ownership.

  • Easy access to filtration and trap arrangement
  • Multiple extraction locations maximize overall efficiency
  • “On the fly”maintenance eliminates downtime

Innovative Cooling System

BTU’s unique clamshell air or water-cooling design moves the cooling media away from the process chamber, where it can be easily accessed for maintenance.

  • Water cooling features a sliding heat exchanger assembly allowing easy access for maintenance
  • Closed loop cooling control provides variable cooling rates and increased process control

Lead Free Process-Guaranteed

BTU’s repeatable process control eases the transition to lead-free.

  • Stainless steel construction
  • 350°C Maximum temperature
  • Closed loop convection control
  • Superior cooling performance

Standard Features

  • Lead Free Process-Guaranteed
  • 350ºC Maximum Temperature
  • Forced Impingement Convection
  • Programmable Heating and Cooling Rates
  • Side to Side Gas Recirculation
  • Low Nitrogen and Power Consumption
  • Flexible Platform Configuration
  • Automatic Width Adjust
  • Dynamic Gas Idle
  • Smart Product Tracking (SMEMA)
  • WINCON Control Software
  • Electronic Over-Temperature Safety System

Options

  • 24 in Processing Capability
  • 400ºC Maximum Temperature
  • Belt and Rail Conveyors
  • Fine Mesh Conveyor Belts
  • Multiple Track Solution
  • Flux Management
  • Closed Loop Convection Control
  • Integrated Water Supply
  • Low Nitrogen Consumption Package
  • High Power Heaters
  • Center Supports
  • Automatic Gas Sampling
  • UL 508A and CE Compliant
  • Automated Wafer Handling
  • Barcode Reader

Customer Support

BTU’s quality products are backed by its Industry leading comprehensive warranty.

  • Lifetime on heaters and blowers
  • 3 years system
  • 1 year labor

To enhance uptime the Pyramax is supported by BTU’s 24-hour, 7-DayWorldwide customer support, electronic user documentation, and Parts Identification Software which allows customers to identify parts without the use of a cumbersome paper manual.


1.Short lead time;

2.Quality guaranteed.
3.All size and model available.
Flason SMT are long term and stable supplier of above stated SMT parts.
Flason SMT will Provide high quality and low price goods and perfect follow-up service.


Keywords:

SMT Reflow OvenLead free Reflow OvenReflow Oven ManufacturerLED Reflow OvenPCB Reflow OvenNitrogen Reflow OvenDual Lane Reflow OvenChina Reflow Oven.


Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT Reflow Oven ManufacturerWave Soldering MachinePick and Place MachineSMT Stencil PrinterSMT Inspection MachineSMT Reflow OvenSMT Peripheral EquipmentSMT Assembly lineSMT Spare Parts  etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: sales@flason-smt.com
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
